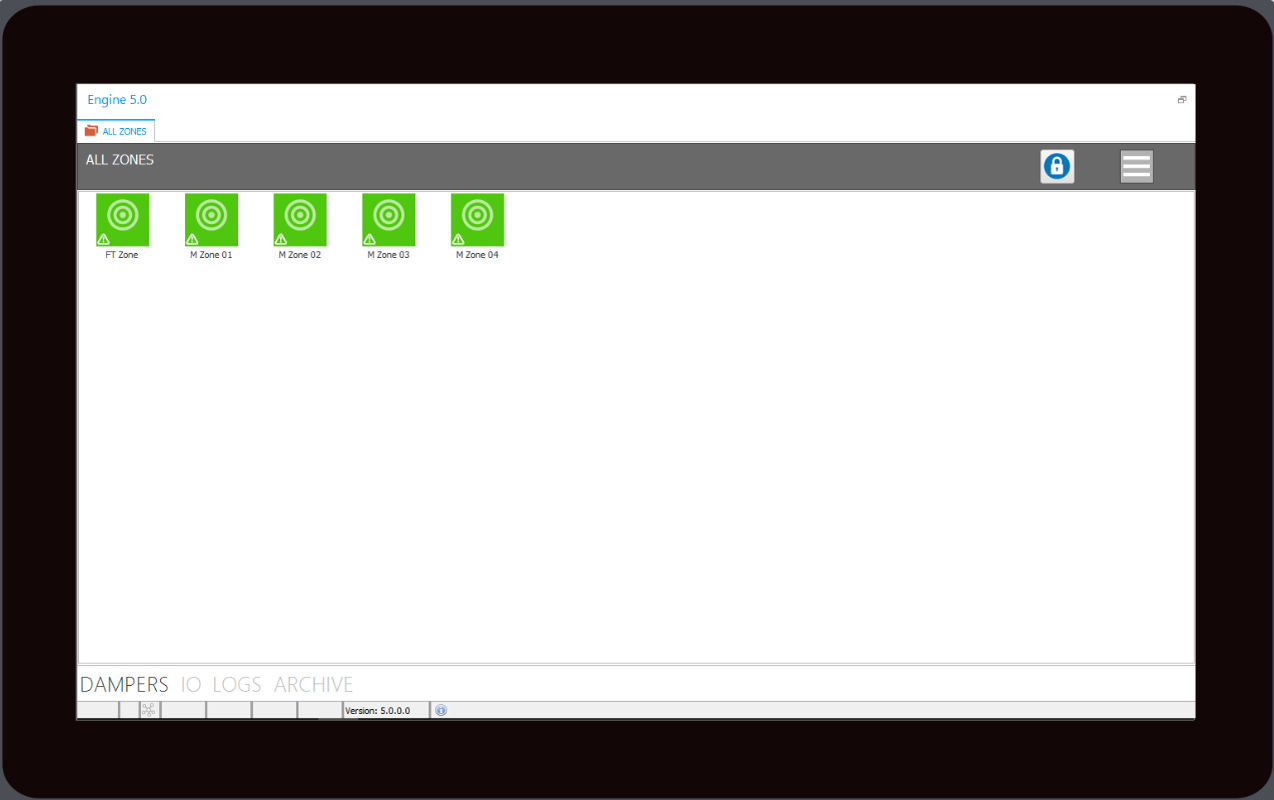

V5 Screen Shot.PNG
V5 Image.jpg
V5 Screen Shot.PNG

Safegard V5 - Addressable

Key Features

  • Compartmentalise fire zones and reduce the spread of smoke and fire.

  • Keep escape routes and fire-fighting access open.

  • Allow pressurisation and smoke extract by combined operation of dampers and fans.

  • Allow complex strategies (cause and effect).

  • Optional networking of panels to a central control and monitoring panel - up to 64 networked panels

  • Safegard V5 is a CE marked, EMC and LVD compliant product

  • Optional remote access via internet

  • Powerful and very flexible functionality accommodates any last minute changes to strategy, zones, damper quantities, references and descriptions etc and enables standardisation of software (no bespoke site specific versions required)



Description

The system has been designed with the user in mind, providing an advanced tool that simplifies installation and commissioning of dampers and peripheral devices. The embedded panel PC operates on an embedded platform and utilises solid state technology for optimum reliability.

It's server architecture delivers benefits such as reduced commissioning time, simplified operation and scope for future growth and flexibility.

The Safegard V5 system is designed to protect life and property from damage caused by smoke and fire, by providing the means to:

  • Compartmentalise fire zones.

  • Reduce the spread of smoke and fire.

  • Keep escape routes and fire-fighting access open.

  • Allow pressurisation and smoke extract by combined operation of dampers and fans.

  • Allow complex strategies (cause and effect).

Construction

Dampers control panels are standard manufacture.

Specification

The Safegard V5 System consists of either a 10 or 15 inch embedded computer depending on the panel size (see page 3), UPS and preloaded software. The system communicates with damper interfaces to provide intelligent control and monitoring of motorised dampers and monitoring of manual fire dampers. The data network cablingenables substantial reduction in costs when compared with conventional systems. Digital input/output devices can be accommodated on the network cable or located within the panel enclosure.

Dimensions

Please see catalogue for more details.


Product Documents

Title Type Added
Actionpac LNS5-Safegard V5 User Guide Issue 01 Guide about 3 months ago
Safegard V5 Catalogue Catalogue about 3 months ago
Safegard V5 Network Extender Catalogue about 6 months ago
Safegard V5 Network DIO Interface Catalogue about 6 months ago
Safegard V5 Network Cable Rules Catalogue about 6 months ago
Safegard V5 Modbus & BACnet BMS Protocol Catalogue about 6 months ago
Safegard V5 Damper Interface Catalogue Catalogue about 6 months ago
Safegard V5 Panel Installation Catalogue about 6 months ago
